Features
OT Sketch simplifies the home modification design process for Occupational Therapists.
We Make Designing Home Mods Fun
- OT Sketch is simple to use and intuitive.
- Switch between top view and 3D views with the click of a button.
- Drag and drop the objects you need onto your floor plan.
- We’ve designed OT Sketch with a “less is more” approach to be fast and accurate.
- Suitable for both home mods beginners and gurus!

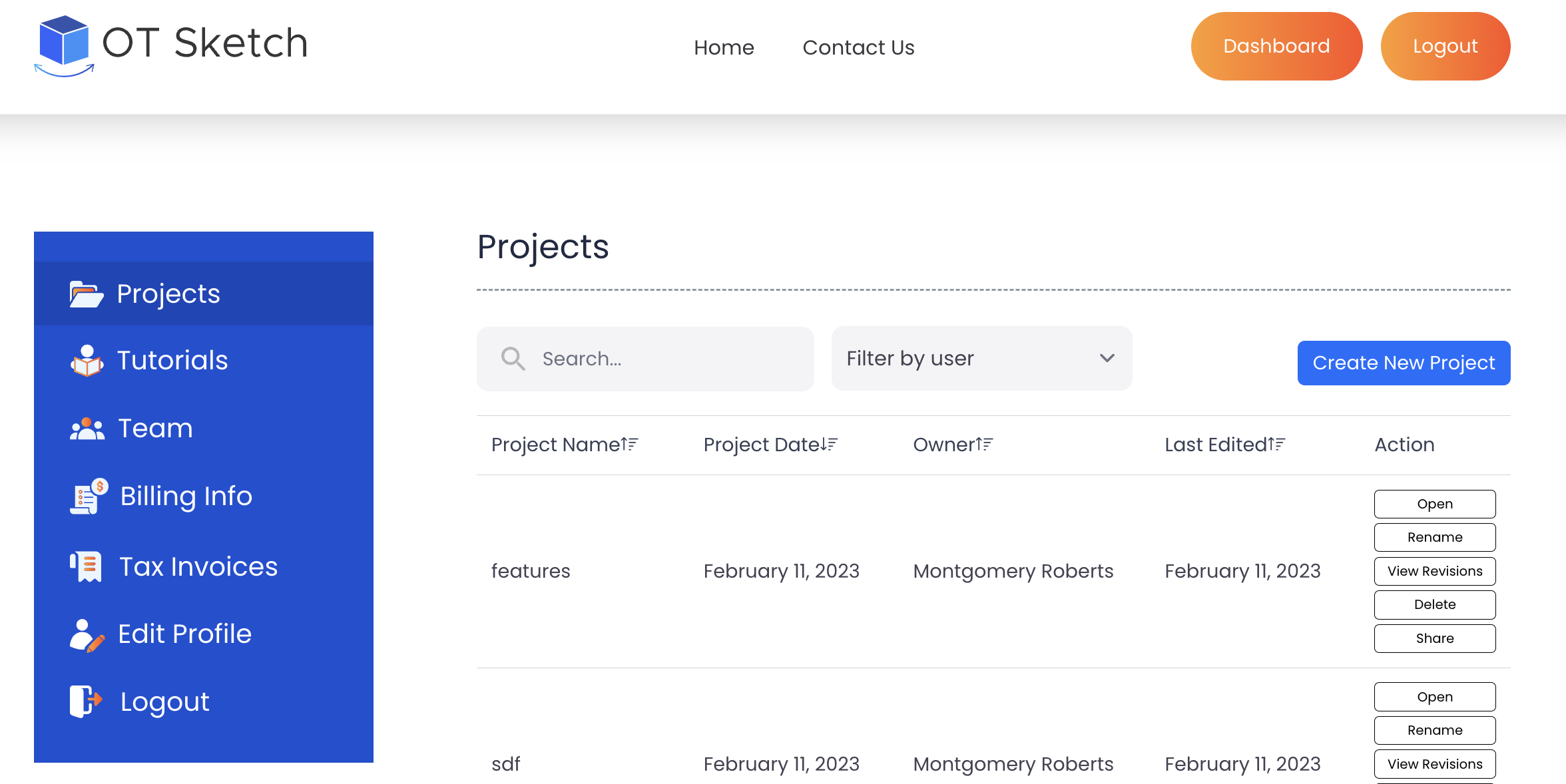

A Dashboard Just for You
- Clean dashboard to store and review your designs.
- Create brilliant new designs and view revisions.
- Add team members, and update your account information at any time.
- We support independent OTs through to large organisations with hundreds of OTs.

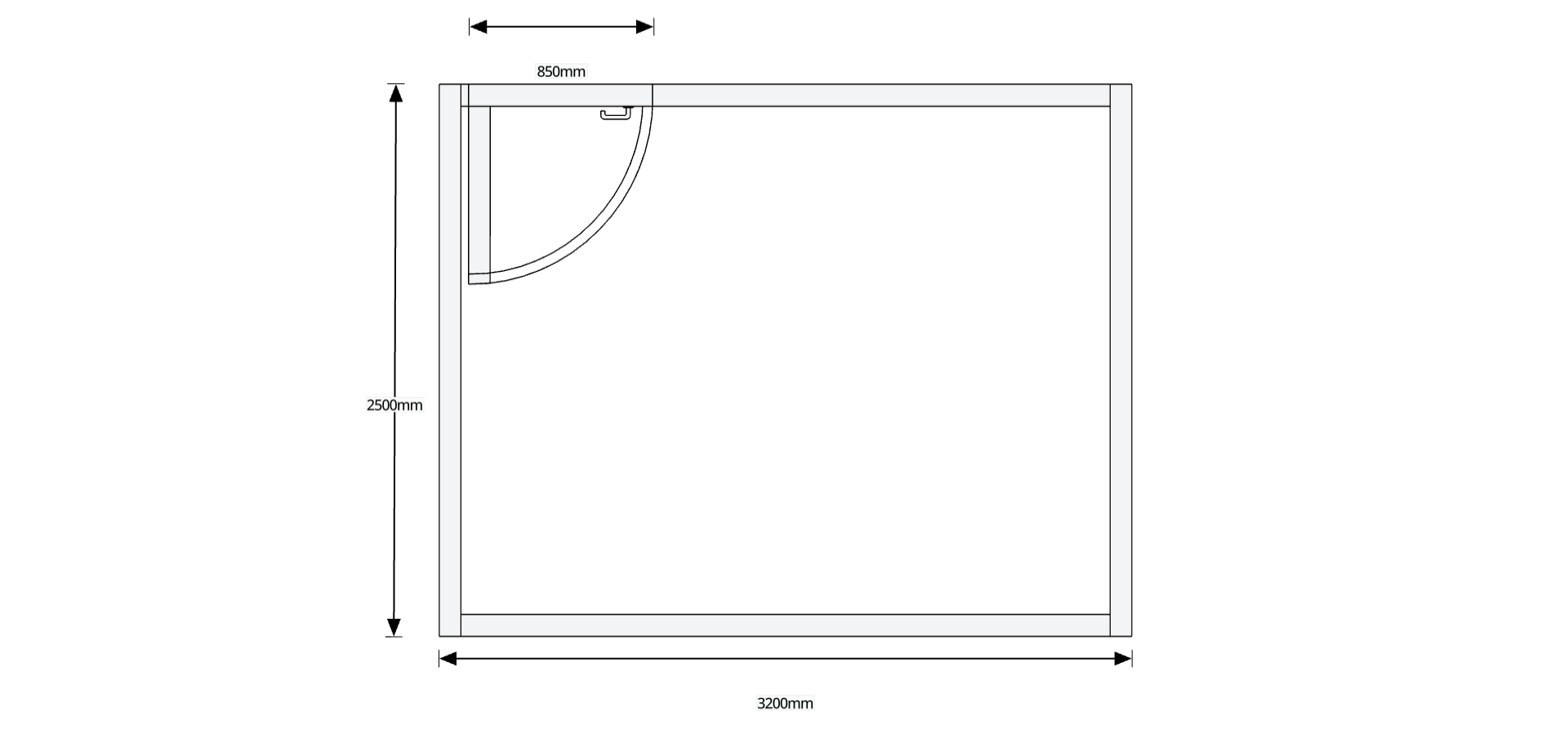

Create your Floor Plan
- Create any size room and wall sizes with our adjustable walls of any height, length or thickness.
- Drag boxes across to represent landings, elevated decks, washing machines, kitchen islands and other objects at any specification.
- Importantly, our doors show a swing radius, offer an ergonomic handle, and are width-adjustable for wheelchair or standard access

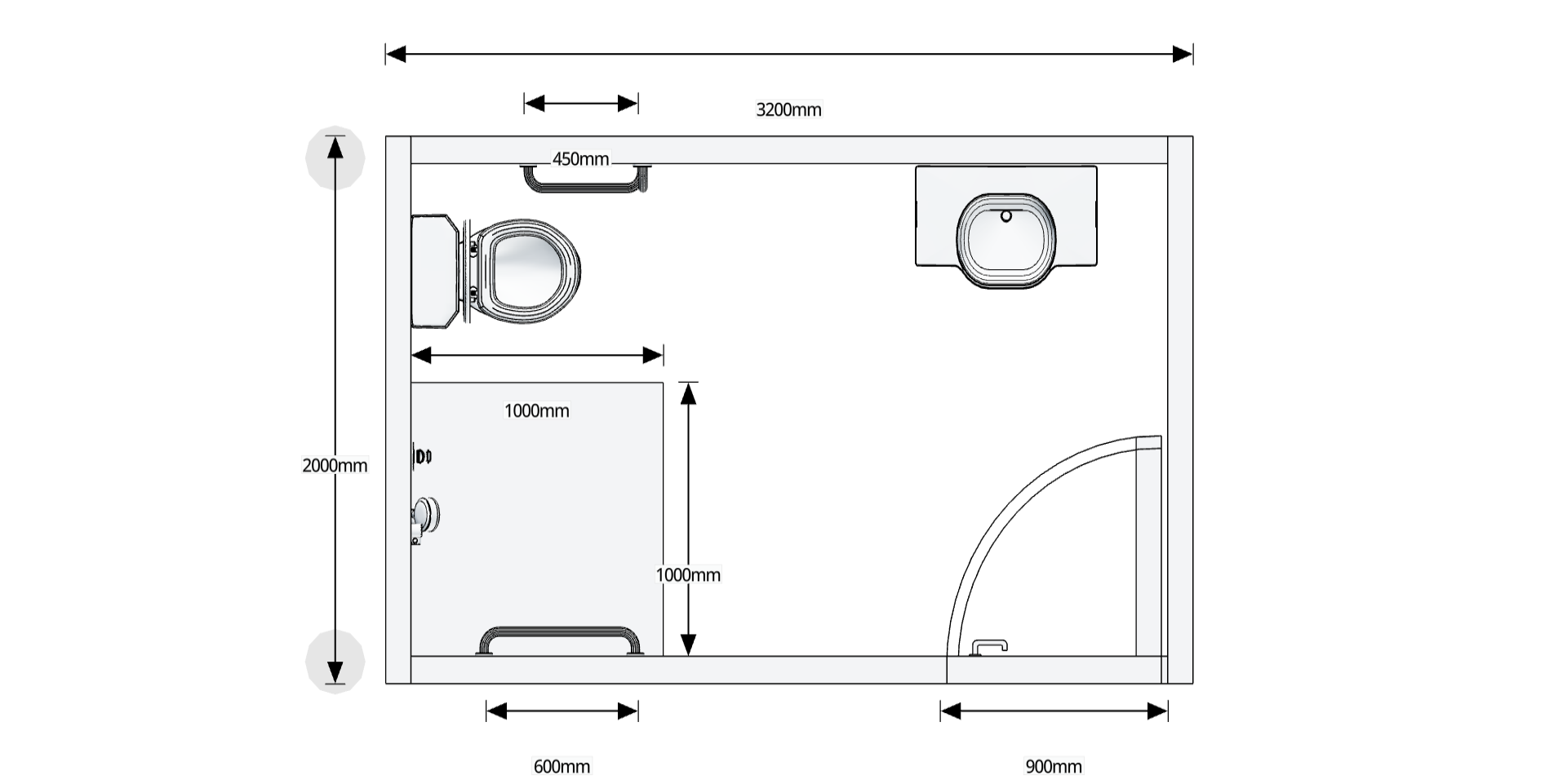

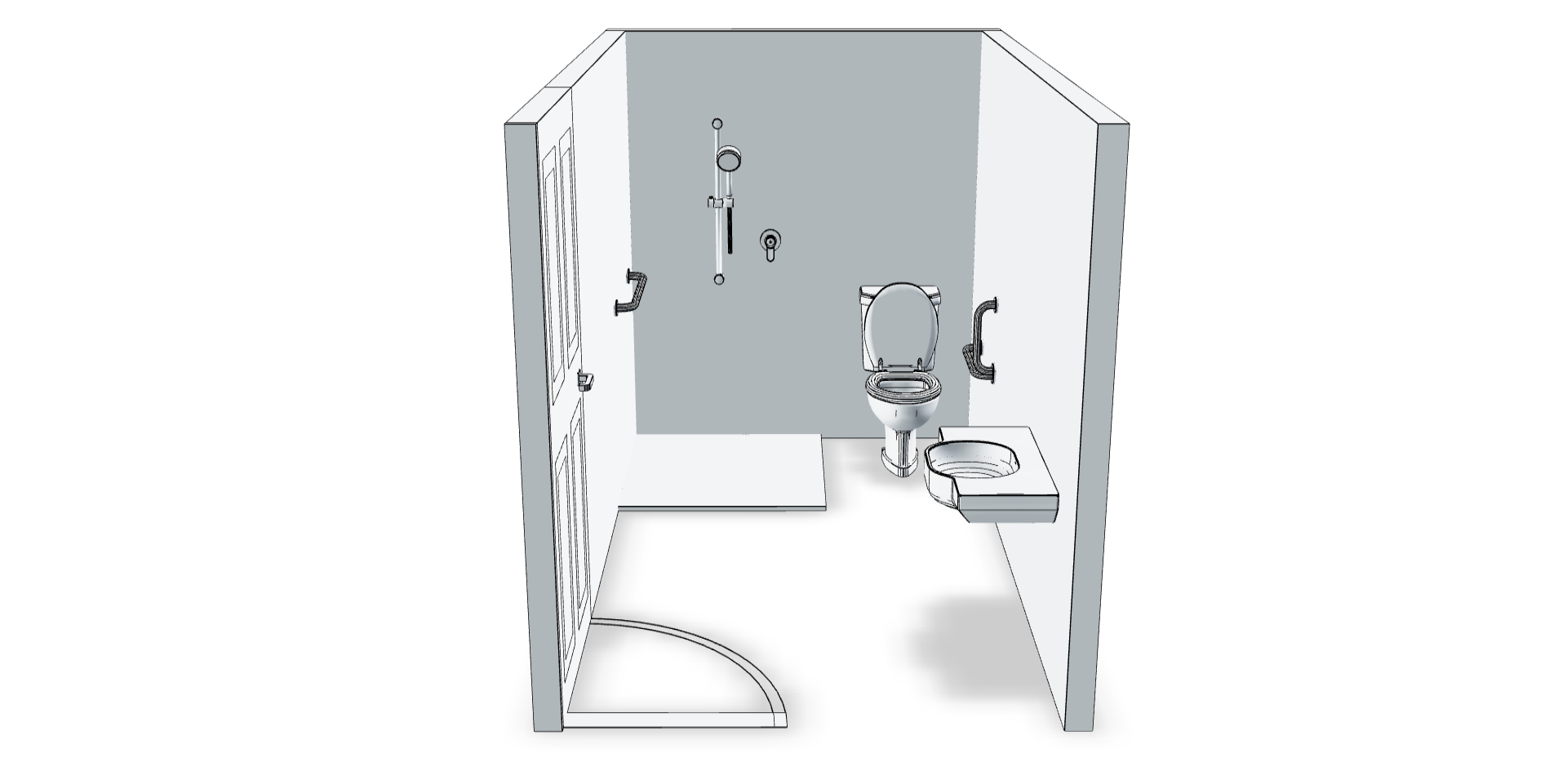

Brilliant Bathrooms
- Baths, toilets, hand-held showers, shower mixer taps, shower lever taps, middle basins, left basins, right basins, lever taps with spout and a mixer tap for basins – we’ve got them all.
- Adjust baths to any specification.
- All bathroom items have been directly recommended by practising OTs.
- OT Sketch basins are wheelchair accessible, can be placed at any elevation and length / width, and can use either mixer or lever taps.
- We support many types of handrails.
We’ve Got a Shape for That
- Basic shapes, such as line, square and circles, make it easy to draw those finer details.
- Shapes can be used to indicate flat showers, grate drains, windows, and much more.
- Use text labels, measurements and arrows to show the room dimensions or point to a specific part of your design.

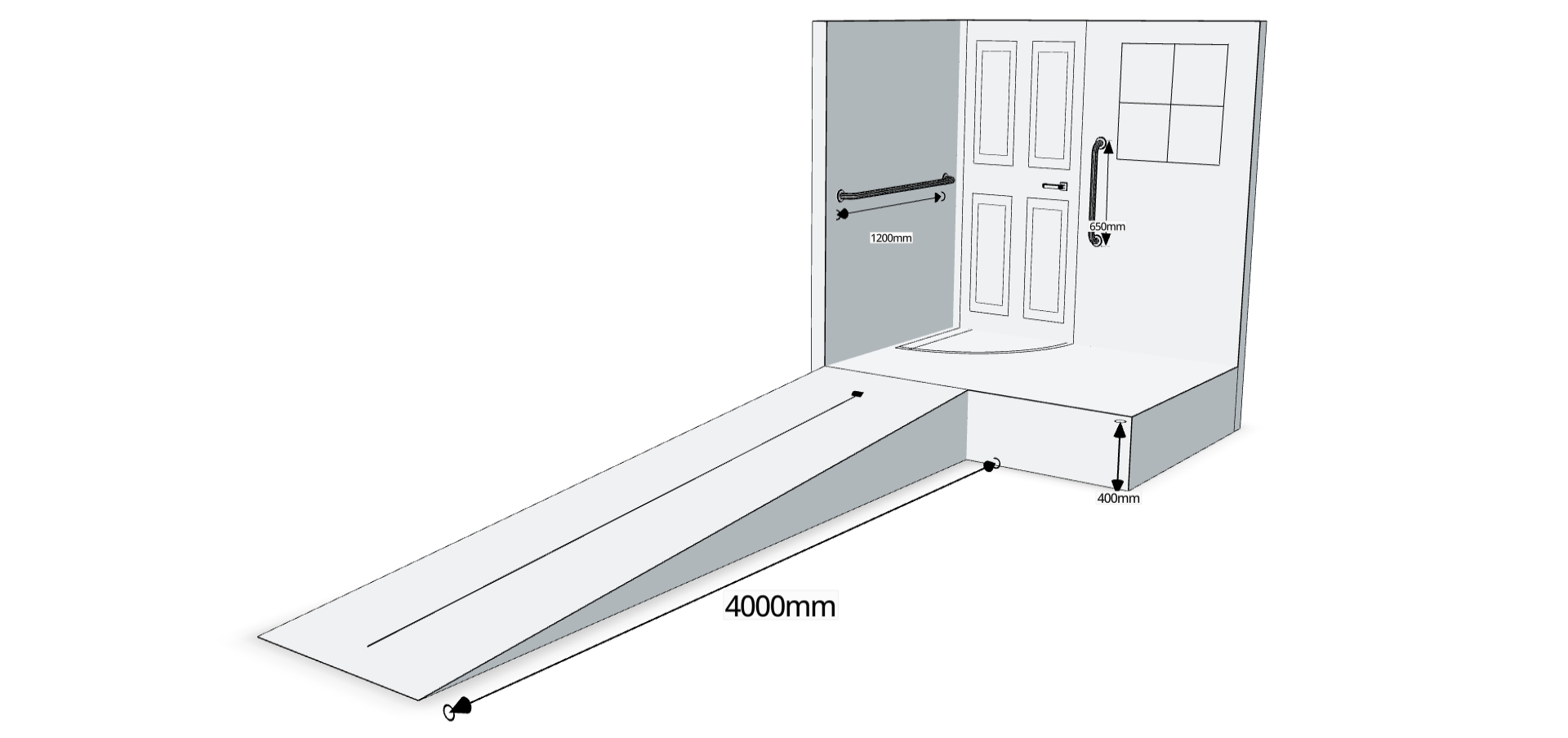

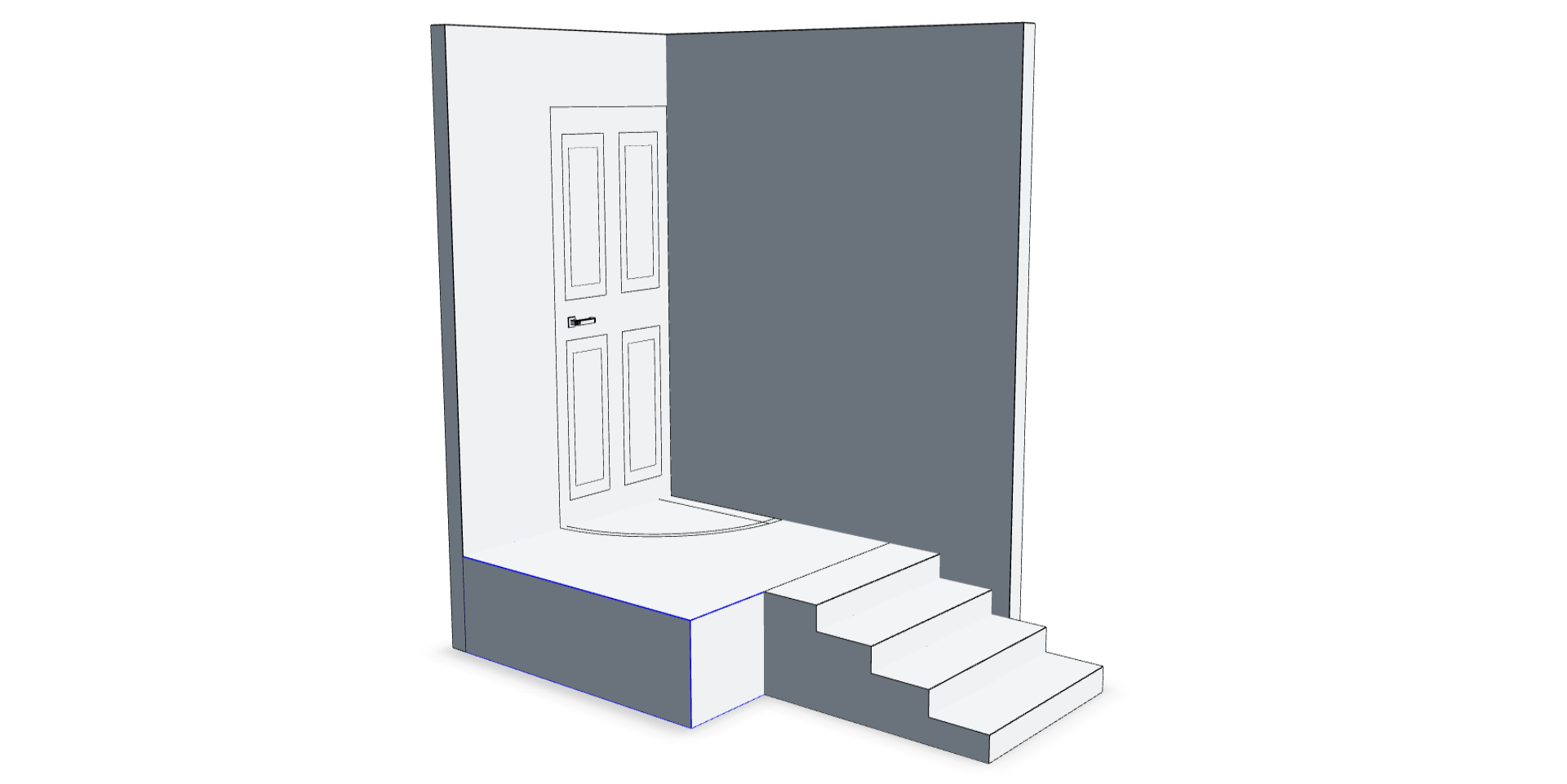

Simple to Design Stairs & Ramps
- Easily create stairs and ramps of any specification.
- Choose auto-generated step tread/rise specs based on the length/height of the staircase, or enter each step individually for those unique staircases.
- Ramps can be made to any gradient with the click of a button.

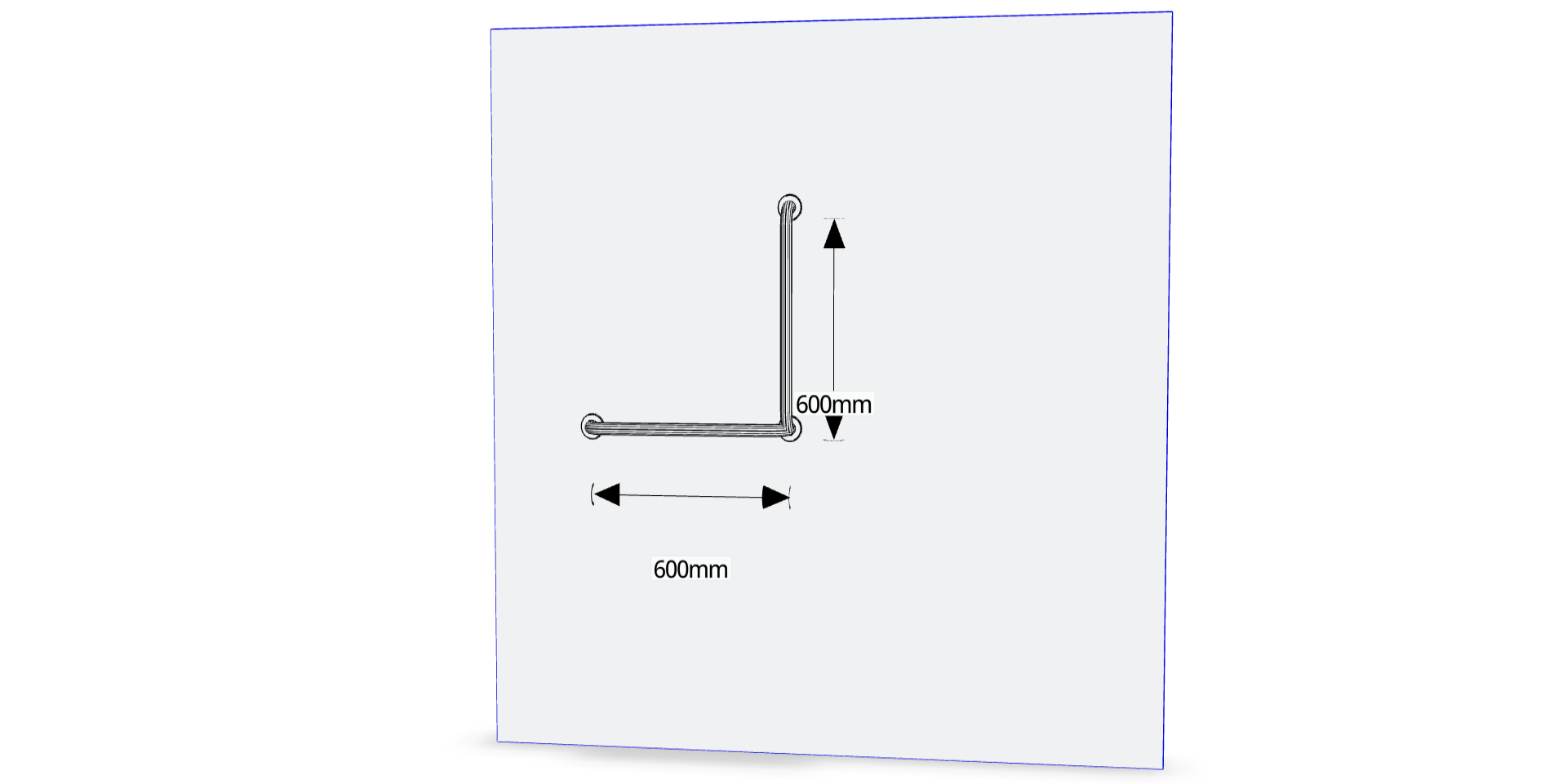

Rails in the Right Place
- Drag and drop the most common sizes of handrails used by OTs.
- Horizontal handrails: 300mm / 450mm / 600mm / 900mm / 1200mm.
- Vertical handrails: 300mm / 450mm / 600mm / 900mm / 1200mm.
- Easily place rails on a wall and achieve the desired elevation.
Instantly Share your Design in both PDF & PNG
- Export your design as PDF or PNG file types.
- You can easily export in either top view or 3D view, as well as export with a white background for high contrast.
- Our objects are black and white, as OT Sketch is here to make the design and collaboration process simple.
- It’s time to share your brilliance.
